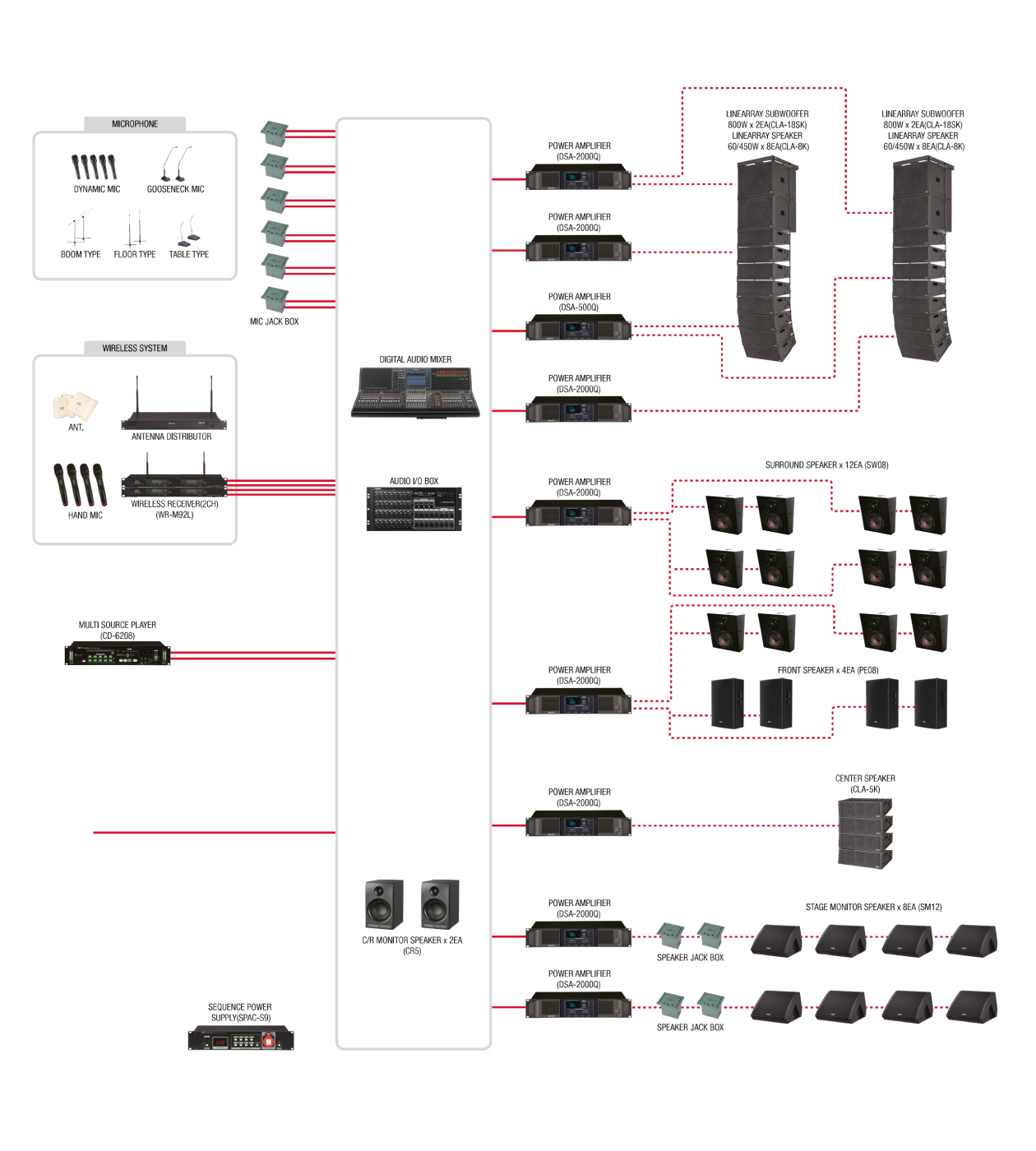

System configuration
Features
- High power speaker with high power and frequency characteristics for live performance
- System that can flexibly respond to various cultural events
- Multi-channel digital audio mixer that can control multiple instruments and sound sources for performances
- Digital transmission infrastructure that minimizes noise generation
- Ensuring efficiency and operational convenience with a digital mixer with a built-in DSP
- Securing sufficient input for various events with high-quality sound pickup microphones, infrastructure, and wireless microphones
- Monitor speaker system with frequency characteristics and sufficient sound pressure for stage performers
Device Components
| Device name | Standard | Unit | Quantity | Model name |
|---|---|---|---|---|
| DIGITAL MIXER | DIGITAL 72CH | EA | 1 | |
| AUDIO I/O BOX | Rack I/O 32in /24out | EA | 1 | |
| LINEARRAY SPEAKER | 60/450W | EA | 16 | CLA-8K |
| LINEARRAY SUBWOOFER | 800W | EA | 4 | CLA-18SK |
| LINEARRAY SPEAKER FRAME | STEEL | EA | 2 | CLA-8K FRAME |
| LINEARRAY SPEAKER | 30/160W | EA | 4 | CLA-5K FRAME |
| LINEARRAY SPEAKER FRAME | STEEL | EA | 1 | CLA-5K FRAME |
| SURROUND WALL SPEAKER | 225W | EA | 12 | SW08 |
| SPEAKER BRACKET | STEEL | EA | 12 | SW08WB |
| STAGE MO. SPEAKER | 400W | EA | 8 | SM12 |
| POWERED SPEAKER | 170W | EA | 2 | CR5 |
| POWER AMP | 1200W x 4CH | EA | 8 | DSA-2000Q |
| MULTI SOURCE PLAYER | SD RECORDER & VIRTUAL CD | EA | 1 | CDR-01 |
| MICROPHONE | DYNAMIC | EA | 5 | MH80 |
| MIC STAND | BOOM TYPE | EA | 2 | BS-4 |
| MIC STAND | FLOOR TYPE | EA | 2 | FS-3 |
| MIC STAND | TABLE TYPE | EA | 2 | TSG-1 |
| WIRELESS RECEIVER | 900MHz, 2CH | EA | 2 | WR-M92L |
| WIRELESS HAND MIC | 900MHz | EA | 4 | WH-M91L |
| WIRELESS ANTENNA | 900MHz | EA | 2 | EPA-9001 |
| ANTENNA DISTRIBUTOR | 900MHz | EA | 1 | WAD-900 |
| MIC JACK BOX | 2CH | EA | 6 | |
| SPEAKER JACK BOX | 2CH | EA | 4 | |
| POWER DISTRIBUTOR | 8CH | EA | 2 | SPAC-660N |
