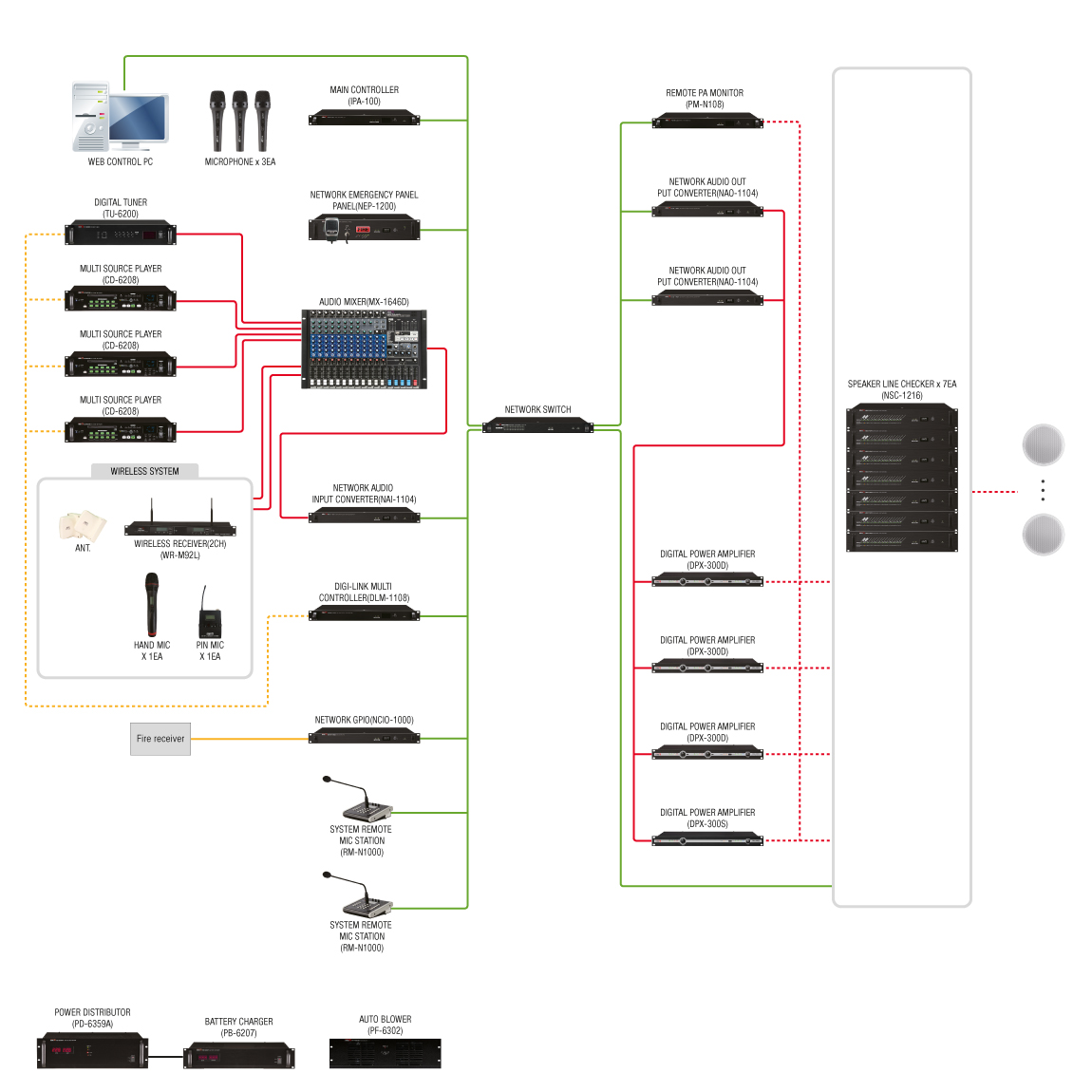

System configuration
Features
- 24 bus broadcasting availabe for broadcasting by grade and class and expandable system up to 512 zones
- Easy control through PC and remote integrated control through network
- TTS sound source broadcasting and schedule broadcasting control through network (MP3, TTS-8 languages supported)
- Web-based integrated control software regardless of PC failure (PC, laptop, tablet can be used)
- Network remote microphone broadcasting with digital transmission method (No far-distance noise or line degradation)
- Real-time short detection function (automatically cut off the corresponding line in case of short circuit)
- Built-in protection circuit in case of earth fault and reverse voltage of speaker line (when applying DPX series amplifier)
- 255 group broadcasting allows easy operation of multiple classrooms and broadcasting by grade level
Device Components
| 품명 | 규격 | 단위 | 수량 | 모델명 |
|---|---|---|---|---|
| NETWORK CONTROL SERVER | SERVER | EA | 1 | IPA-100 |
| NETWORK GPIO | CONTACT 16CH | EA | 1 | NCIO-1000 |
| NETWORK AUDIO INPUT CONVERTER | 4CH | EA | 1 | NAI-1104 |
| NETWORK AUDIO OUTPUT CONVERTER | 4CH | EA | 2 | NAO-1104 |
| SPEAKER LINE CHECKER | 16CH | EA | 7 | NSC-1216 |
| DIGI-LINK MULTI CONTROLLER | DIGI-LINK | EA | 1 | DLM-1108 |
| NETWORK EMERGENCY PANEL | TCP/IP | EA | 1 | NEP-1200 |
| CONTROL TOUCH SERVER | 19” Touch Screen, i5 | EA | 1 | TC-6000 |
| AUDIO MIXER | 16in/4out | EA | 1 | MX-1646D |
| SWITCHING HUB | L2, 16port | EA | 1 | GES-162 |
| MULTI SOURCE PLAYER | VIRTUAL CD | EA | 3 | CD-6208 |
| DIGITAL TUNER | AM/FM | EA | 1 | TU-6200 |
| REMOTE PA MONITOR | TCP/IP | EA | 1 | PM-N108 |
| DIGITAL POWER AMP | 300W x 2CH | EA | 3 | DPX-300D |
| DIGITAL POWER AMP | 300W | EA | 1 | DPX-300S |
| SYSTEM REMOTE MIC STATION | TCP/IP | EA | 2 | RM-N1000 |
| WIRELESS RECEIVER | 900MHz / 2CH | EA | 1 | WR-M92L |
| WIRELESS HAND MIC | 900MHz | EA | 1 | WH-M91L |
| WIRELESS BELT MIC | 900MHz | EA | 1 | WB-M91L |
| WIRELESS ANTENNA | 900MHz | EA | 2 | EPA-9001 |
| MICROPHONE | DYNAMIC | EA | 3 | MD-50S |
| MIC STAND | TABLE TYPE | EA | 3 | TSG-1 |
| POWER DISTRIBUTOR | AC/DC | EA | 2 | PD-6359A |
| BATTERY CHARGER | AUTO | EA | 1 | PB-6207 |
| AUTO BLOWER | AUTO FAN | EA | 2 | PF-6302 |
| CABINET RACK | 40U | EA | 2 | PA-401D |
